Power path diagram (simplified TPC design)

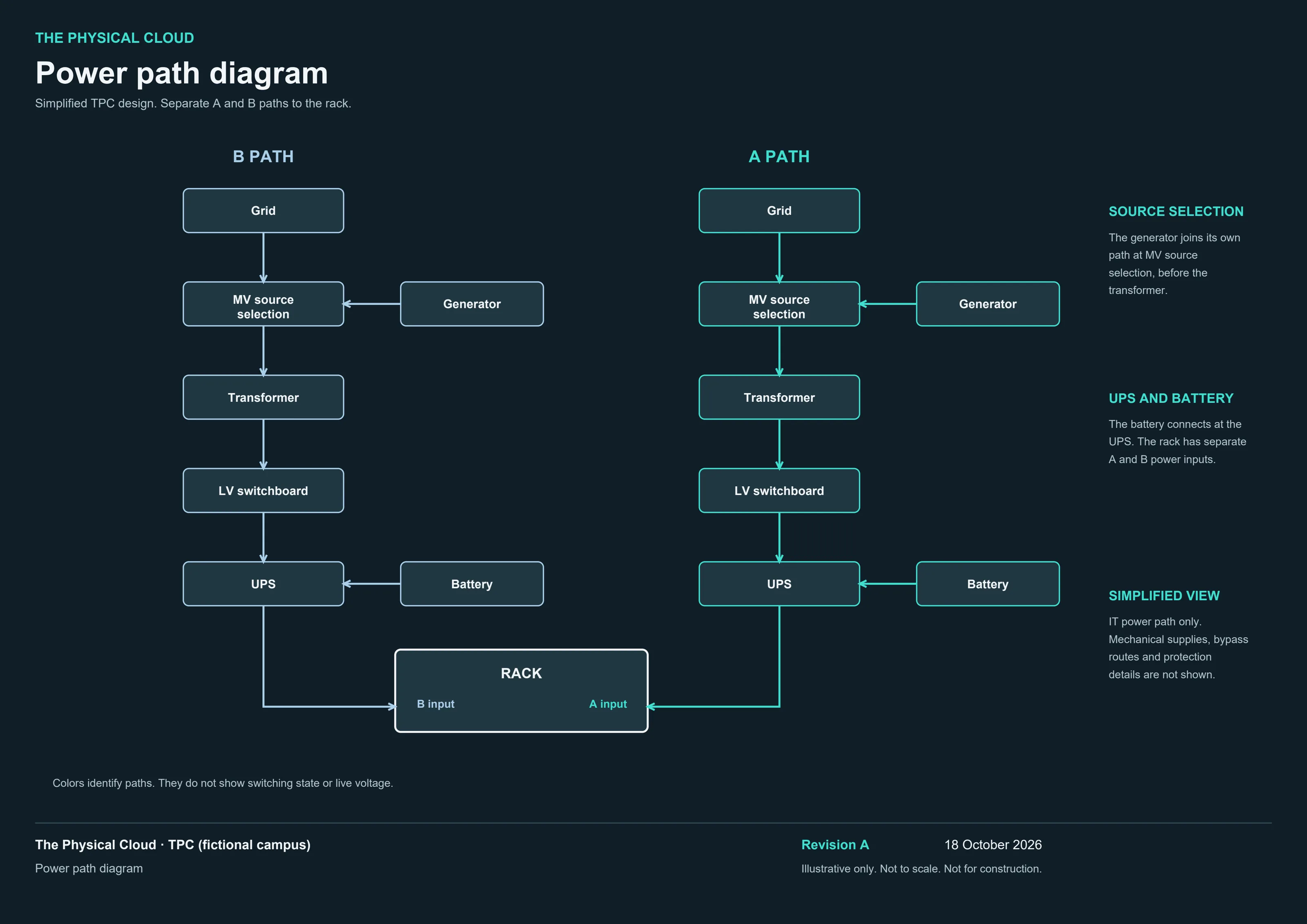

The two separate power paths, A and B, from the grid to the rack: medium-voltage source selection where the generator joins, the transformer, the low-voltage switchboard, and the UPS with its battery.
